Description

Key Features:

• • • Reclosers:
      – Equipped with an aptional group-operated loadbreak disconnect switch.

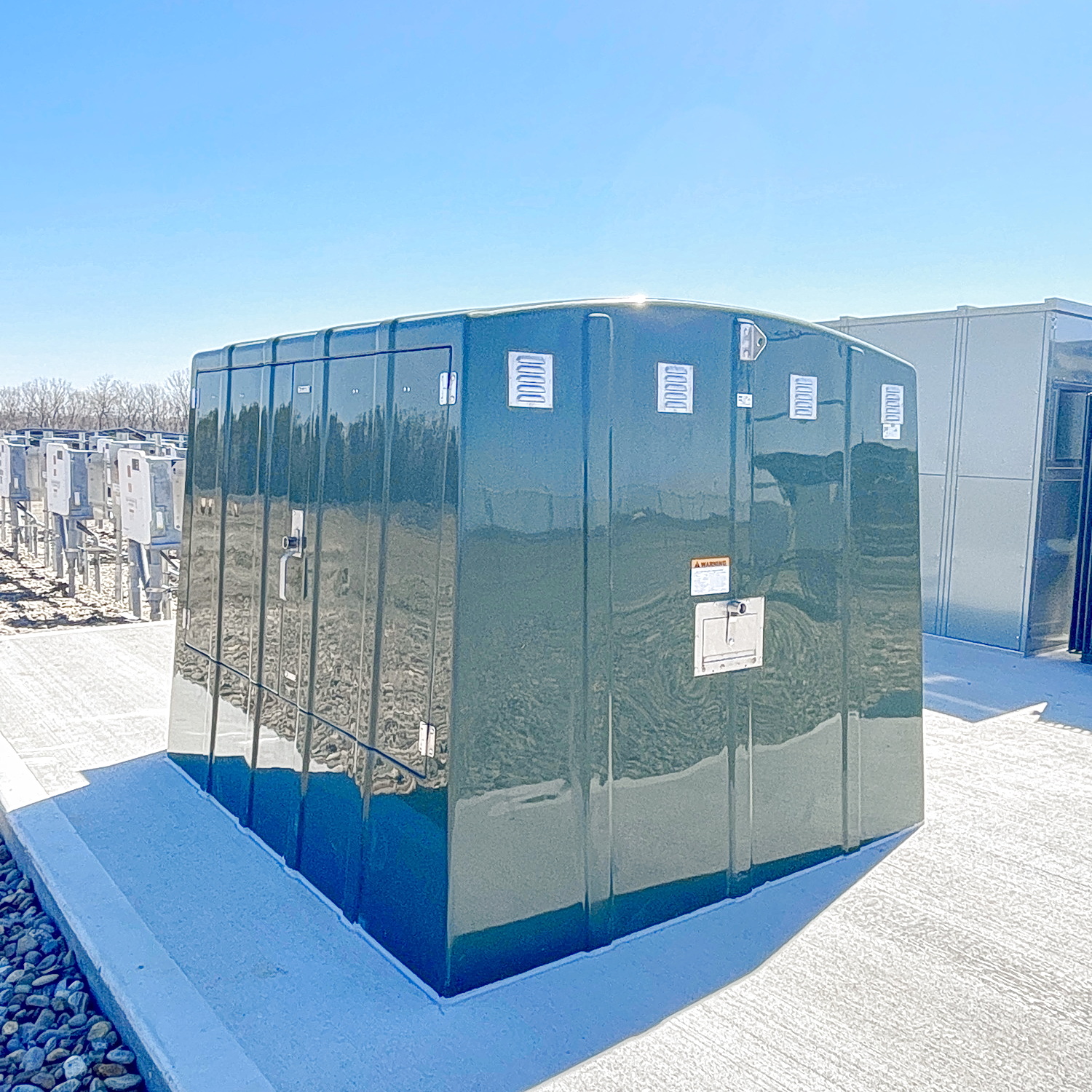

    • Padmount Enclosure:
      – Fiberglass, outdoor, weatherproof design with stainless steel hardware.
    • Voltage & Ratings:
      – Designed for 25 kV systems with 125 kV BIL rating; compatible with either 15 kV or 25 kV rated reclosers.
    • Construction:
      – Ultra-strong, fire retardant, corrosion resistant.
    • Durability:
      – Fiberglass laminate guaranteed for 25 years against degradation under normal use.
    • Frame:
      – Free-standing, Hot-dipped galvanized steel frame for easy removal of enclosure and access to equipment.
    • Switching & Isolation:
      – Optional group-operated disconnect switch with Lexan viewing window for visible break.
    • Control System:
      – Recloser control module mounted externally on the enclosure.
    • Power Supply:
      – Control power transformer included to provide 120 VAC to the recloser control.

? Contact our sales department for a quotation including any special requirements or custom configurations.
