Wall-Mount 600V Secondary Termination

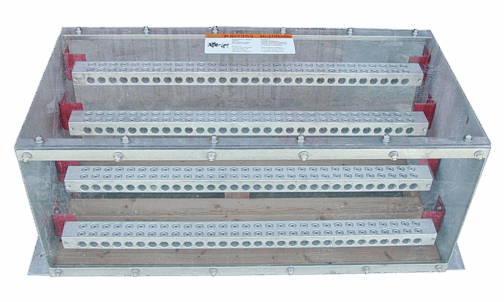

Our three-phase 600 V wall-mounted secondary termination assembly features a rugged galvanized steel wall-mount frame with a ¼-inch thick clear Lexan cover frame for safety and visibility. Each unit is equipped with fiberglass GPO-3 angle insulators for high dielectric strength and mechanical durability. Designed for heavy-duty distribution applications up to 4,000 amps, it accommodates either 22- or 30-position aluminum set-screw connectors accepting conductor sizes from #2 AWG to 750 MCM. A copper grounding connector is included as standard to ensure secure and reliable system grounding.
Drawings ~ 600v Secondary Termination Switchgear
Below are a few examples drawings of both our padmount & wall-mount 6oov secondary termination switchgear. Drawings (PDF Files) can be downloaded by click the individual model part number.
📞 Contact our sales department for special requirements or custom configurations
| Drawings | Type | Phase | Connectors | Positions per plus Neutral | Volt | Amps |
|---|---|---|---|---|---|---|
| PS4-44-2222 | Pad-Mount | 3 | CU or Alum. Bus | (17) - NEMA 2 Hole | 600V | 1,300 to 7,740 Amps |
| PS2-44-1582 | Pad-Mount | 3 | Alum. Set Screw | (22) #2-750MCM Conductor Range | 600V | 4000A |
| MB-40-30-1766 | Wall-Mount | 3 | Alum. Set Screw | (30) #2-750MCM Conductor Range | 600V | 4000A |
| MB-40-22-4124 | Wall-Mount | 3 | Alum. Set Screw | (22) #2-750MCM Conductor Range | 600V | 4000A |
Videos ~ 600V Secondary Termination Switchgear
Below are links to product, repair, & instructional videos for our 600V secondary termination switchgear that are on our Vimeo channels. Please check back as we continue to add additional valuable information.
Specifications & Resources ~ 600V Secondary Termination Switchgear
Below are links to specifications & resource materials for our 600V Secondary Termination Switchgear that can be downloaded. Please check back as we continue to add additional valuable information.
Specifications:
Resource Material:
Quote Request ~ 600V Secondary Termination Switchgear
Design your own multi-connection 600V secondary termination switchgear by completing the form below with as much information as you can and submit it to our sales department. Our multi-connection secondary termination switchgear is suitable for up to 600V and is offered with either high-conductivity copper bus with current rating 1600A through 4300A , aluminum bus bar with a current rating 1300A through to 2900A, or 22 position aluminum set screw connectors with a 4,000A current rating for #2 – 750MCM conductor range. Secondary terminations can be housed in either a pedestal, enclosure, or configured to be wall mounted. A sale representative will contact you to review request with a few days.
