Padmount Primary Metering Swingout Panel
Single and three-phase padmount primary metering assemblies with swingout access panels are available in 15 kV, 25 kV, 35 kV, and 200A. or 600A electrical ratings. Each unit features a galvanized, free-standing frame supporting bushings, outdoor-rated instrument transformers, and swingout panels for full access. The padmount enclosure can be installed or removed independently for simplified field installation. Optional Cutler-Hammer CLPT VT fuses (15 kV or 25 kV, 0.5 E A) are available on 3-bushing-per-phase models—consult factory. All designs comply with NEC, ANSI, IEEE, and NEMA standards, including ANSI C57.12.28 Padmounted Equipment Enclosure Integrity Standard.
Description
Key Features
-
-
-

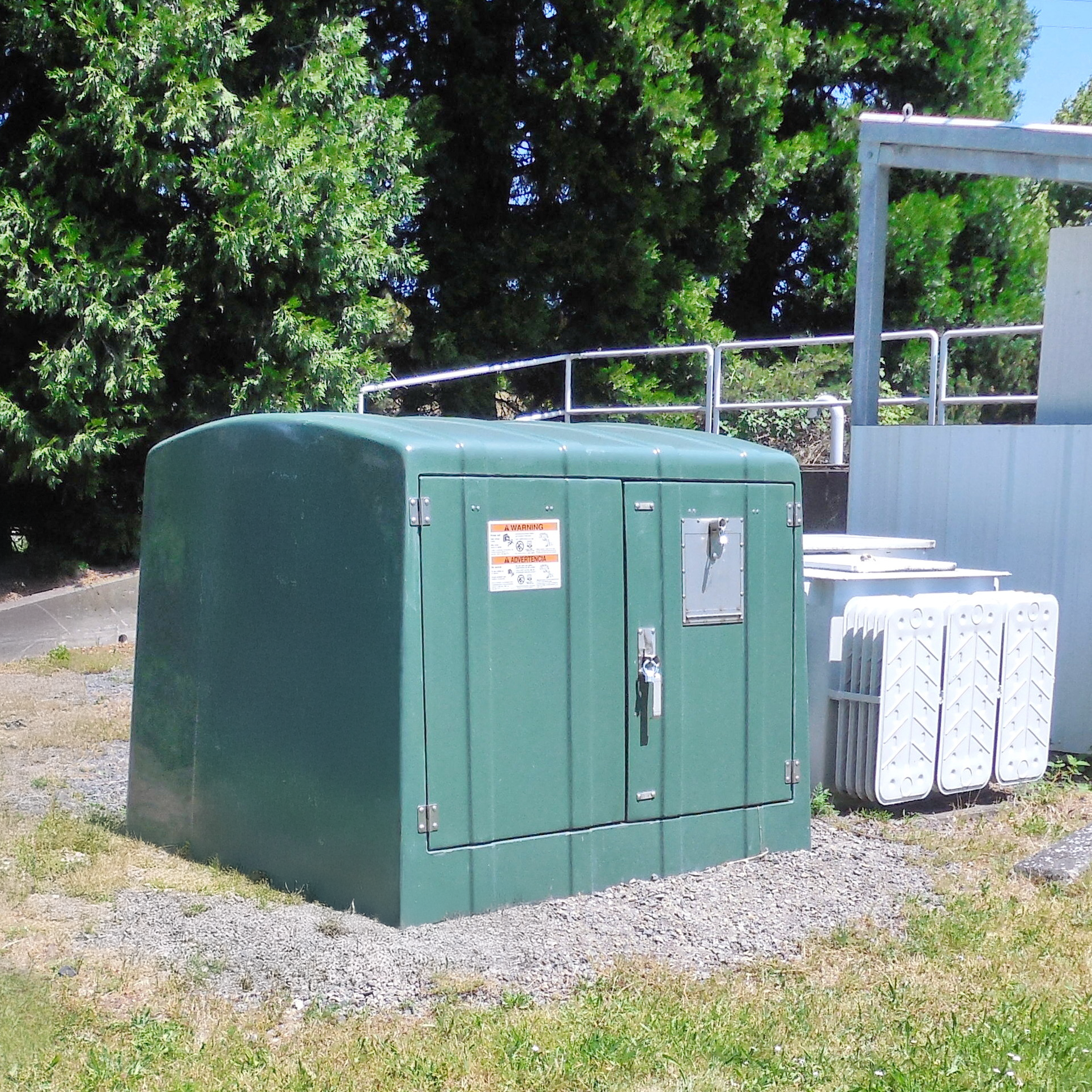

- Padmount Enclosure
– Outdoor-rated, weatherproof fiberglass housing with stainless steel hardware - Material Durability
– Fiberglass laminate guaranteed for 25 years against degradation of strength under normal service conditions - Frame Structure
– Free-standing, hot-dipped galvanized steel frame with optional stainless-steel frame
– Stainless steel sliding bracket on CT base for easy install/removal with enclosure in place

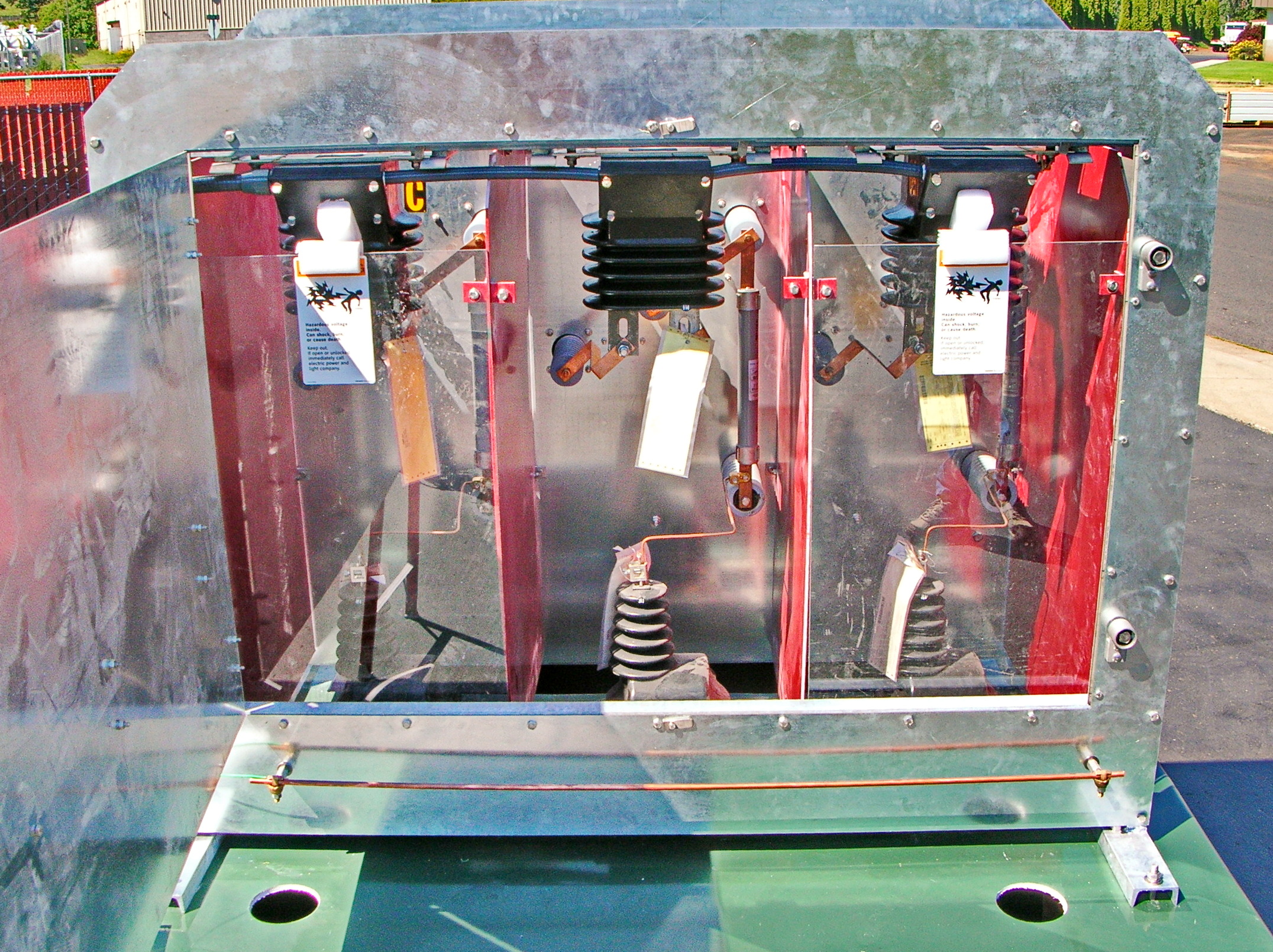

– Swing-out door panels for full access - Transformer Intergration
– Compatible with instrument transformers from all major manufacturers
– Copper bus bar connections to bushings for reliable performance - Schematic Labling
– Black line diagram printed on reflective yellow vinyl tape, & single phase - Wiring & Conduit
– Secondary wiring color-coded to customer specifications
– Installed in non-metallic, liquid-tight conduit with corrosion-resistant fittings
– Includes secondary wiring between CTs & PTs - Metering
– Customer-specified meter base and test switch

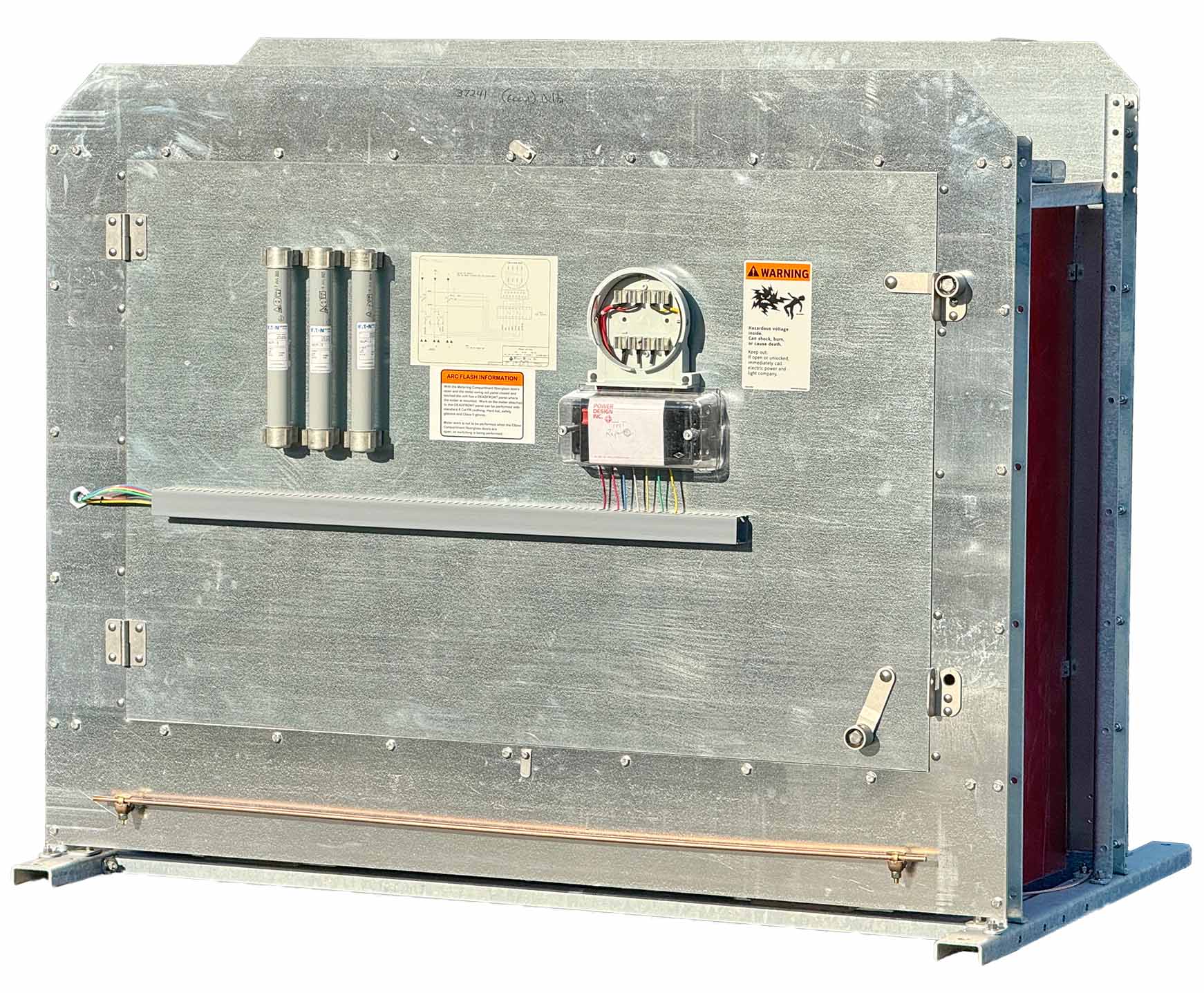

– Mounting options: enclosure side or optional internal swing-out panel for enhanced security
- Padmount Enclosure
-
-
? Contact our sales department for special requirements or custom configurations.
Design your own primary metering switchgear by completing the form below with as much information as you can and submit it to our sales department. Our single & three phase pad mounted & pole top primary metering switchgear are available in 15kV, 25kV, or 35k, 200A or 600A electrical ratings. The pad mounted version features a custom built galvanized free-standing frame that accommodate bushings and outdoor rated instrument transformers. A sales representative will contact you if there are any questions  A sales representative will contact you to review request with a few days.
