CJPF-40 & 41 ~ 15/25kV 200/600A
Both the CJPF-40 & CJPF-41 three phase pad mount cable junction pedestal is made with fire retardant fiberglass and protected with UV stabilized gel coat . Optional 200/600A 15/25 kV 2/3/4-Way junctions are also offered. We certify that all cable junction pedestals conforms to IEEE C57-12-28 Pad mounted Enclosure Integrity Standard..
Description

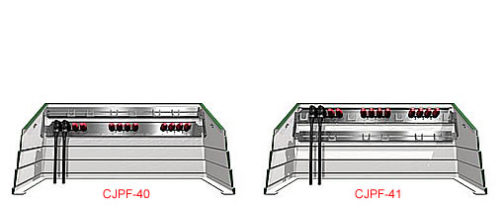

Our three phase pad mount CJPF-40 & CJPF-41 cable junction pedestal series that come with either (6) Adj SS parking stands above (CJPF-40) or below (CJP-41) are available in the following configurations/options;
-
-
- Design – Pad mount
- Heights – 30″ or 41”
- Top Depth – 32″
- Top Width – 69″
- Standard Colors – Willow Green (MG), Munsell Green (MG) or Light Gray (LG). Special colors are also available.
- Safety – Reflective smooth white gel coat interior finish for stickers to adhere to.
- Lifting – Two lifting nuts located on both sides of the pedestals allowing it to be lifted the same way as a single phase transformer is slung.
- Parking Stands – (4) Fixed SS parking stands inline with junctions
- Optional Junctions – (3) 2/3/4-Way 200/600A, 15/25kV,
- Optional Ground Bar – #2 Solid Copper Bus Bar (-GB2), 3/8” Solid Copper Bus Bar (-GB38)
- Optional Ventilation Louvers – (2) SS Louvers W/ SS Screens, 5.1/4″ X 5.1/4″, one each Installed one each side of top
-
| Drawing | Type | Pkng Stds | A | V | Top - W X D | H |
|---|---|---|---|---|---|---|
| CJP-30-3337 | Direct Buried | Above | 200A | 15/25KV | 55" X 27" | 41", 50", 56" |
| CJP-30-3350 | Direct Buried | Above | 600A | 15/25KV | 55" X 27" | 41", 50", 56" |
| CJP-31-3338 | Direct Buried | Below | 200A | 15/25KV | 55" X 27" | 41", 50", 56" |
| CJP-31-3351 | Direct Buried | Below | 600A | 15/25KV | 55" X 27" | 41", 50", 56" |
| CJP-32-3331 | Direct Buried | Inline | 200A | 15KV | 55" X 27" | 41", 50", 56" |
| CJP-33-3330 | Direct Buried | Slant | 200A | 15KV | 55" X 27" | 41", 50", 56" |
| CJP-35/A-3339 | Direct Buried | Above | 200A | 15/25KV | 62" X 32" | 41", 50", 56" |
| CJP-35/A-3352 | Direct Buried | Above | 600A | 15/25KV | 62" X 32" | 41', 50" 56" |
| CJP-35/A-3361 | Direct Buried | Above | 200A | 35KV | 62" X 32" | 41", 50", 56" |
| CJP-35/A-3366 | Direct Buried | Above | 600A | 35KV | 62" X 32" | 41", 50", 56" |
Below are links to marketing & technical literature that can be downloaded. Please check back as we continue to add additional information.
Below are links to specs for our cable junction pedestals that can be downloaded. Please check back as we continue to add additional valuable information.
Certification of Conformance with IEEE C57.12.28 for Cable Junction Pedestals
Sample Cable Junction Pedestal Specification sheet.
Limited Warranty
Design your own cable junction pedestal by completing the form below and submitting it to our sales department. Our direct buried and padmount cable junction pedestals are constructed from fire-retardant fiberglass with a UV-stabilized gel coat. Optional 200A 15/25kV 2-, 3-, or 4-way junctions and copper ground bars are available. All pedestals conform to IEEE C57.12.28 Padmounted Enclosure Integrity Standards. A sales representative will review your request and contact you with any questions or email a quote within a few days.
